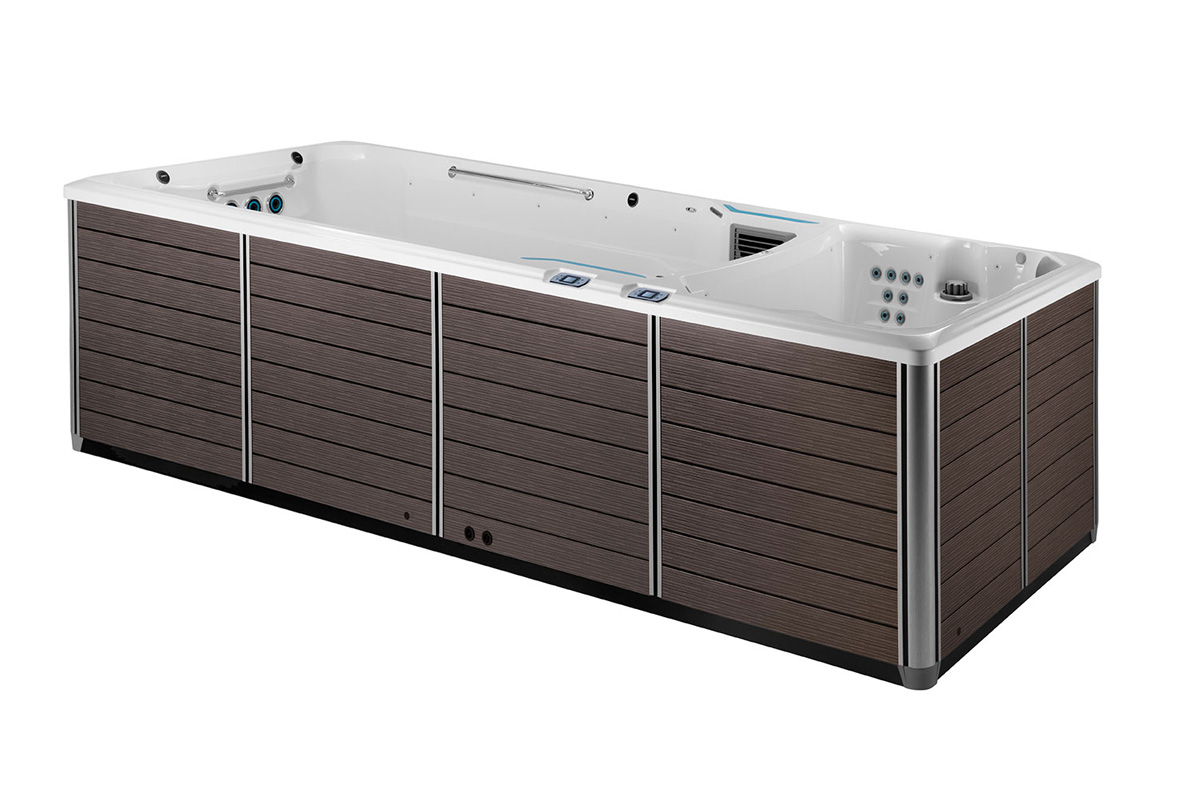

X2000 SwimCross™ Exercise Systems

Never compromise.

Exercise, play and relax, all in the comfort of your backyard, with the SwimCross™ Exercise Systems X2000. Swimming, water exercise, family time and relaxation with hot water therapy are all possible with the right temperature at the right time.

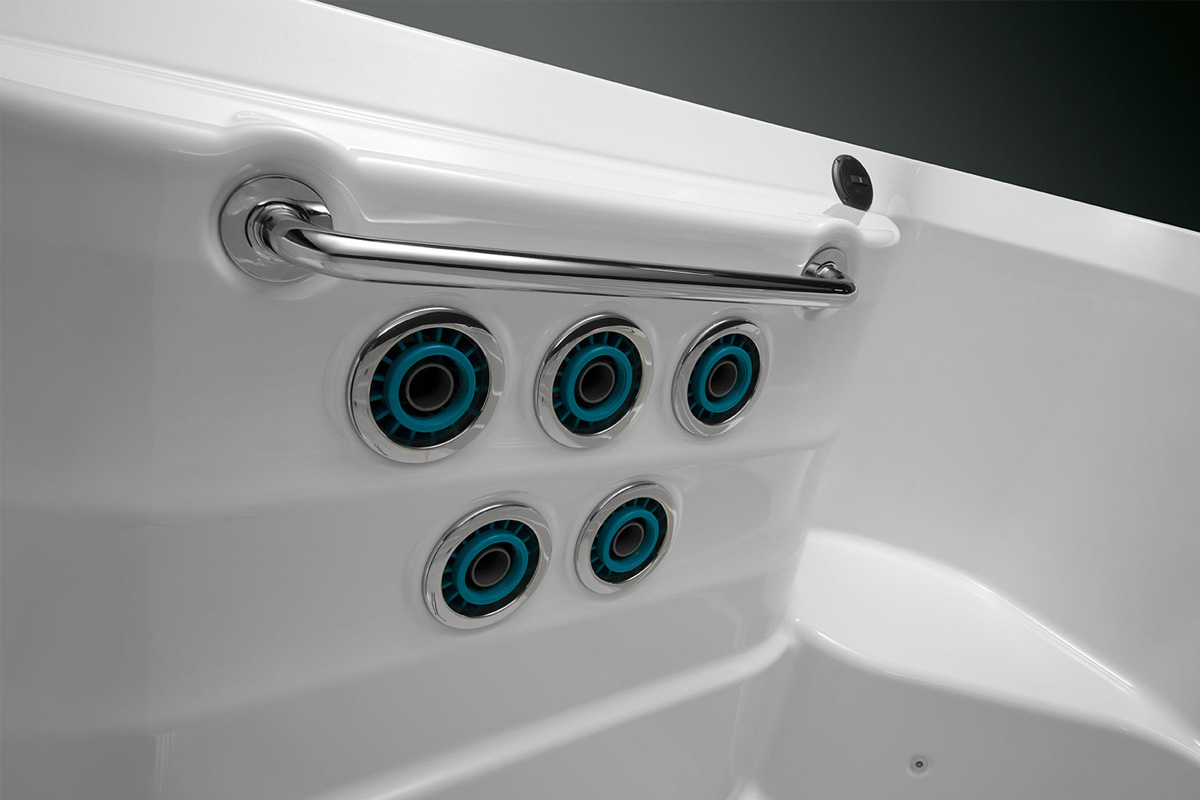

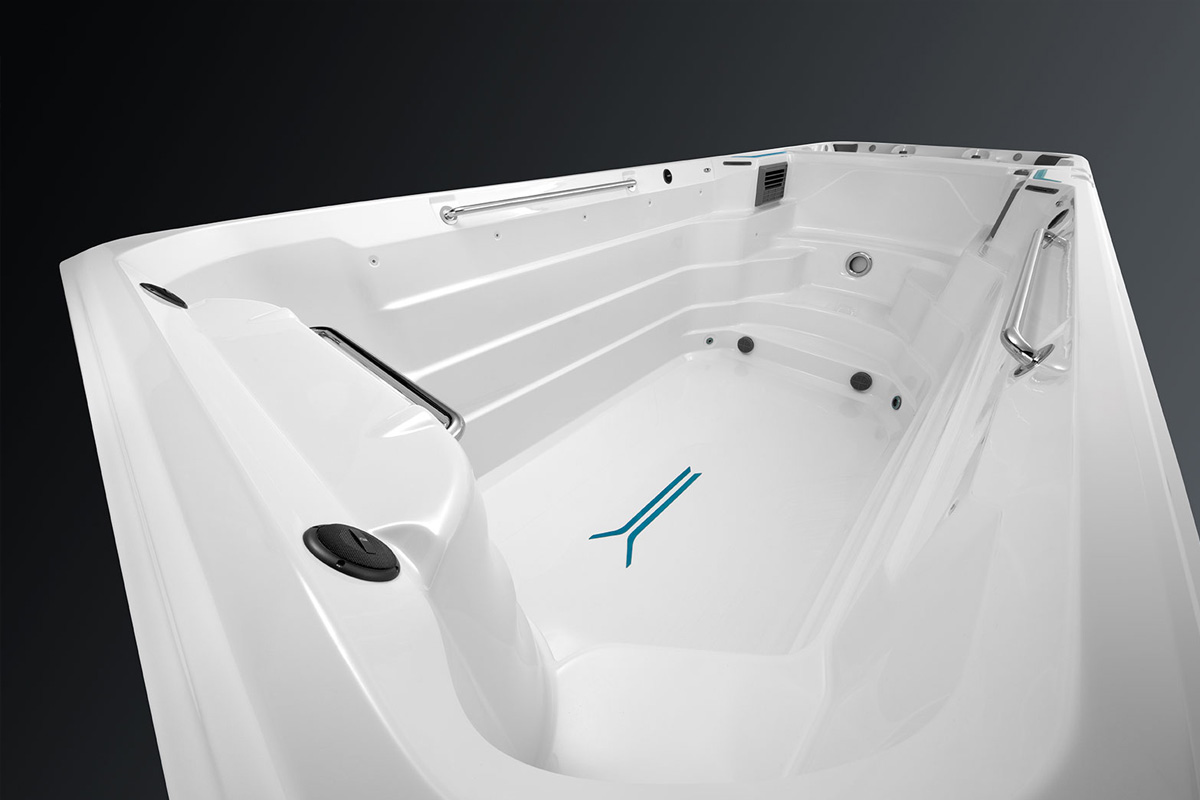

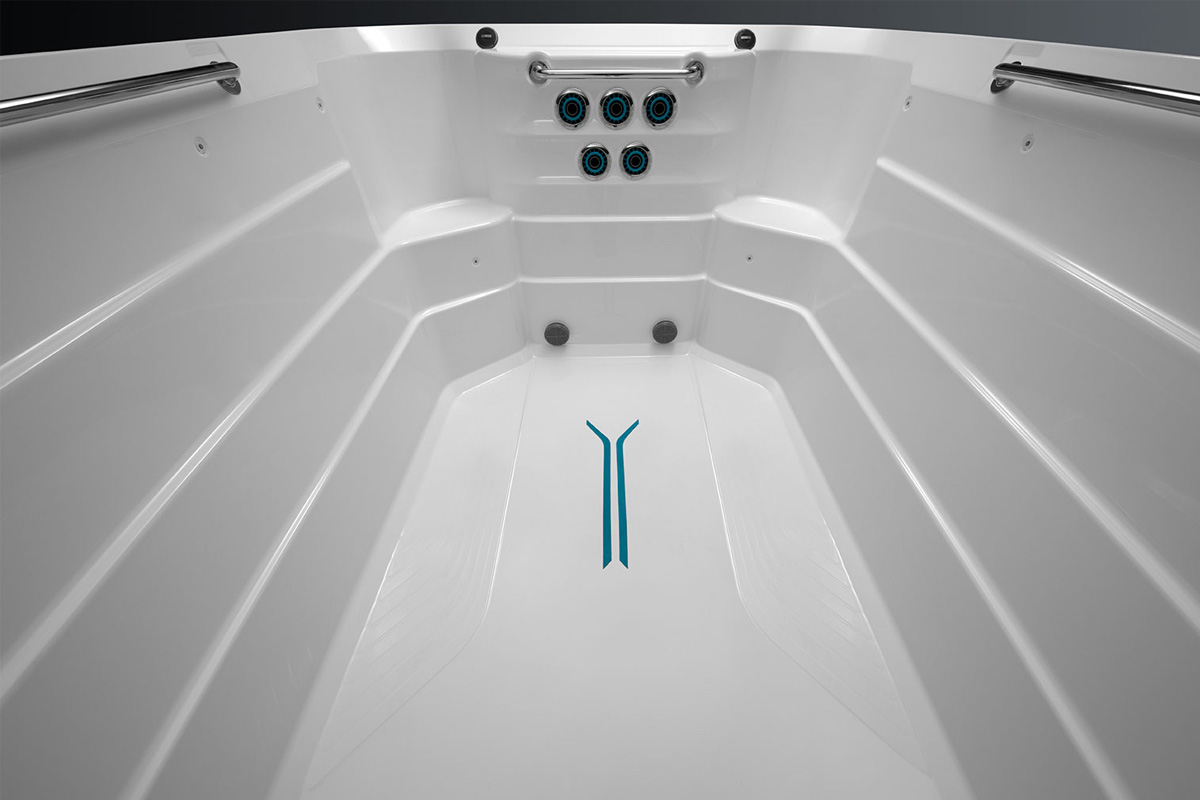

The dual-temperature X2000 boasts the largest swim and exercise area of all Endless Pools® Fitness Systems with the added benefit of a separate spa area with seating for four and independent temperature controls. The five airless swim jets provide excellent resistance for swimming and exercise, while the sculpted spa seating with hydromassage jets pamper tired muscles after your workout. With the X2000 the opportunities for wellness at home are limitless.

Specifications

Spec 58″ Swim and Spa Swim Side Spa Side
Dimensions 20' L X 58" H X 89" W 15' L X 58" H X 89" W 5' L X 38" H X 89" W
Water Capacity 2,350 Gallons 2,000 Gallons 350 Gallons
Weight 3,460 Lbs (Dry) / 24,810 Lbs (Filled*) 3,460 Lbs (Dry) / 24,810 Lbs (Filled*) 3,460 Lbs (Dry) / 24,810 Lbs (Filled*)
Shell Color Options Alpine White or Ice Gray Alpine White or Ice Gray Alpine White or Ice Gray
Cabinet Color Options Dark Mocha or Gray Oak Dark Mocha or Gray Oak Dark Mocha or Gray Oak

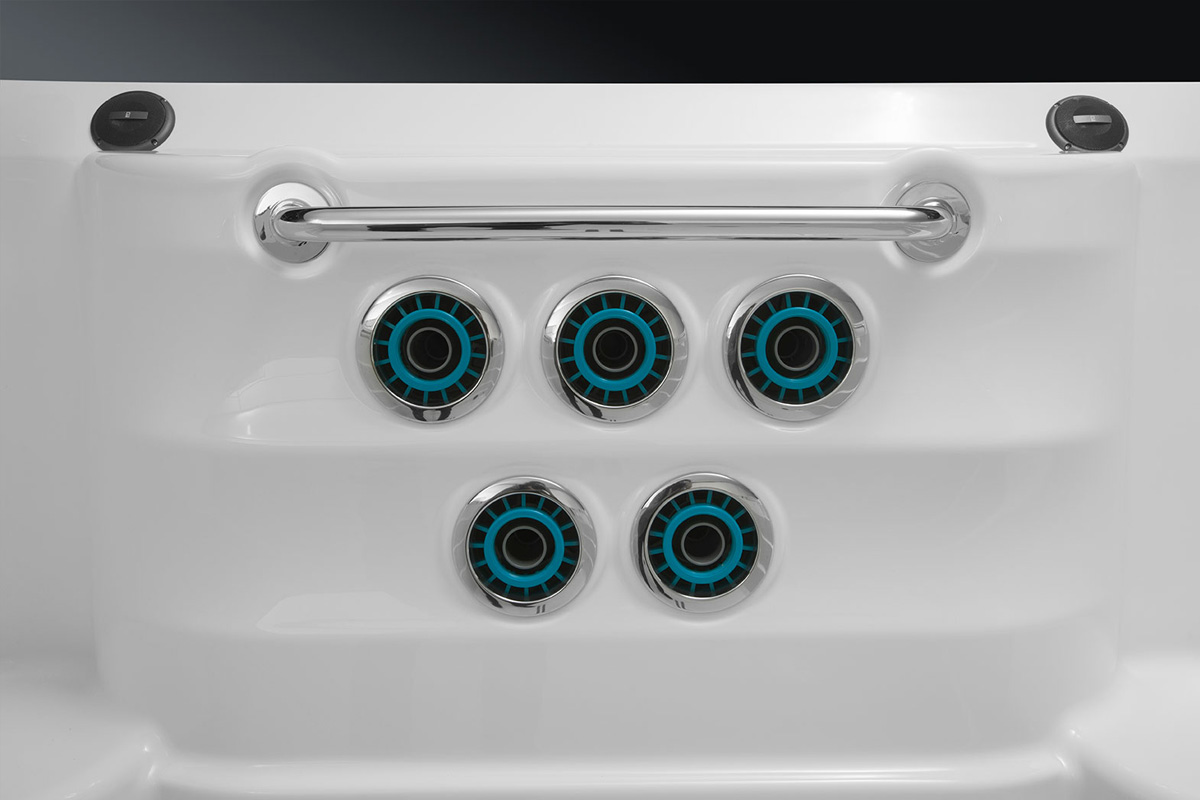

Swim Technology 5 Swim Jets - Max 320 Gallons Per Minute 5 Swim Jets - Max 320 Gallons Per Minute 5 Swim Jets - Max 320 Gallons Per Minute
Swim Jet Pumps 2.5HP XP3 Continuous Duty; 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"2.5HP XP3 Continuous Duty 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed" 2.5HP XP3 Continuous Duty; 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"2.5HP XP3 Continuous Duty 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed" 2.5HP XP3 Continuous Duty; 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"2.5HP XP3 Continuous Duty 5.2 HP Breakdown Torque - (1) Single Speed & (1) Dual Speed"
Substructure 14-Gauge Galvanized Steel Frame  14-Gauge Galvanized Steel Frame  14-Gauge Galvanized Steel Frame
Base Pan Thermoformed ABS Base Pan  Thermoformed ABS Base Pan  Thermoformed ABS Base Pan
Energy Efficiency Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law  Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law  Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law
Music Option 8 Speakers + Subwoofer, Bluetooth® Enabled  8 Speakers + Subwoofer, Bluetooth® Enabled  8 Speakers + Subwoofer, Bluetooth® Enabled
Cover & Lifter Options Watkins® Bi-Fold Covers & Lifters VacuSeal® Cover System  Watkins® Bi-Fold Covers & Lifters VacuSeal® Cover System  Watkins® Bi-Fold Covers & Lifters VacuSeal® Cover System
Additional Options CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, Rowing Kit, Swim Tether  CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, Rowing Kit, Swim Tether  CoolZone™ Cooling System, Floor Mirror, Gecko In.Touch™ WiFi and Mobile App, Rowing Kit, Swim Tether
Seats Bench Seat, 4 Hydrotherapy Seats + Cool Down Seat Bench Seat 4 Hydrotherapy Seats + Cool Down Seat
Hydrotherapy Jets - 34 2 Large Jets 2 Rotary Jets 4 Directional Jets 26 Mini Jets Not Applicable 2 Large Jets 2 Rotary Jets 4 Directional Jets 26 Mini Jets
Hydromassage Jet Pump 2 - 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - 1 Speed Pumps Not Applicable 2 - 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - 1 Speed Pumps
Control System LCD Control Panel 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel LCD Control Panel 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel LCD Control Panel
Water Feature 3 Illuminated Waterfalls 2 Illuminated Waterfalls 1 Illuminated Waterfall
Water Management System UVC + CD Ozone UVC + CD Ozone CD Ozone
Circulation Pump High-Flow Circulation Pump, Filtration Pump High-Flow Circulation Pump Filtration Pump
Effective Filtration Area 200 Square Feet (4 x 50 Square Feet), 50 Square Feet 200 Square Feet (4 x 50 Square Feet) 50 Square Feet
Lighting System 14 Multi-Color LED Points of Light & 5" Main Light & LED Illumination Bar, 12 Multi-Color LED Points of Light 14 Multi-Color LED Points of Light & 5" Main Light & LED Illumination Bar 12 Multi-Color LED Points of Light
Heater 4000w/230v 4000w/230v 4000w/230v
Insulation Tri-Thermic® Barrier System, Full Foam Insulation Tri-Thermic® Barrier System Full Foam Insulation
Grab Rails 3 Stainless Steel Rails 3 Stainless Steel Rails Not Applicable
*Includes water and 10 adults weighing 175 lbs. each

Accessories

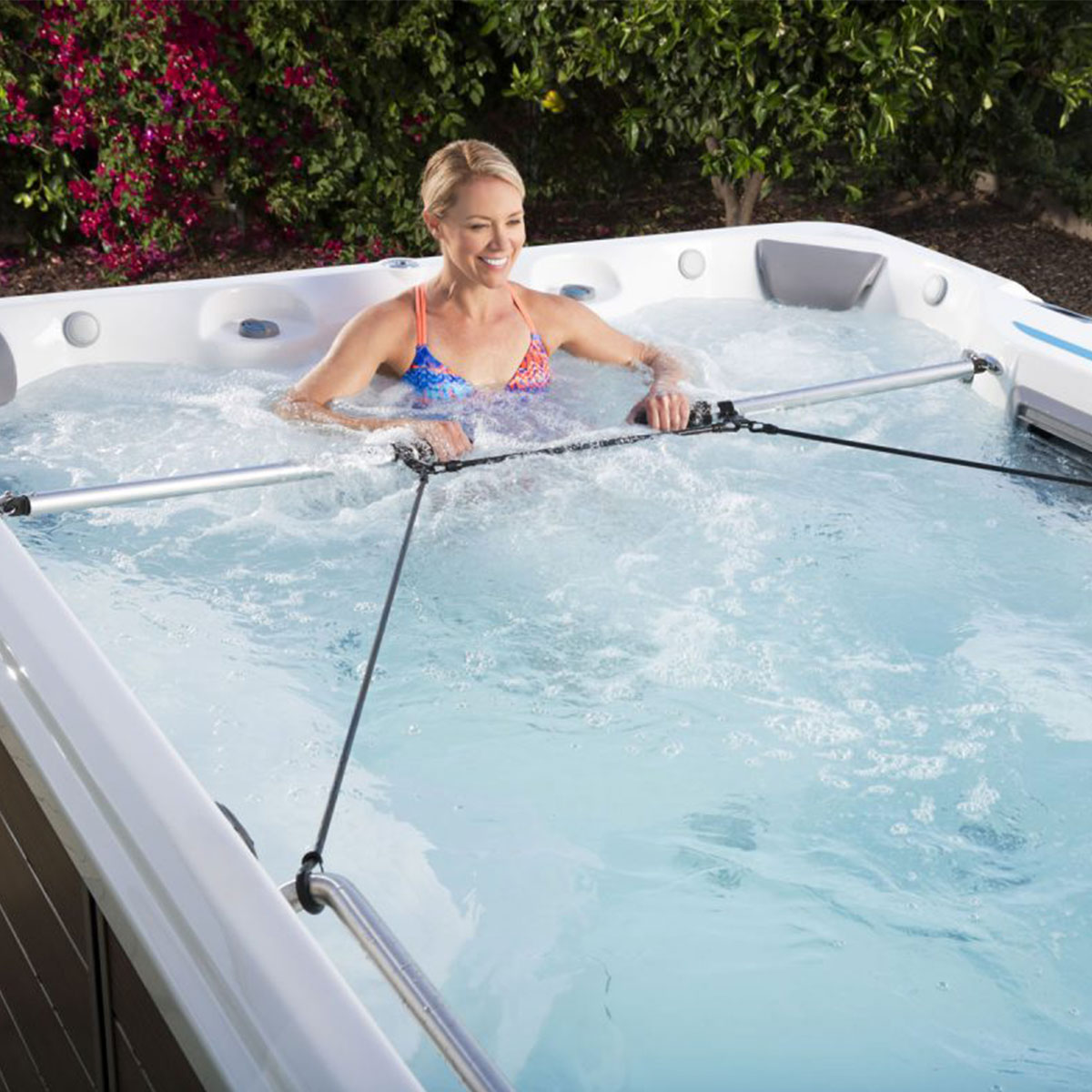

Row Bar Kit with Resistance Gear

Rowing is an exceptional cardiovascular exercise that keeps the heart rate elevated and strengthens core muscles. Attach resistance bands to the sturdy handrails for added workout options.

Set up the performance of any Fitness or Exercise System with the optional rowing and resistance gear. Attach the optional row bars to the built-in anchors and/or handrails to experience a low-impact, full body workout.

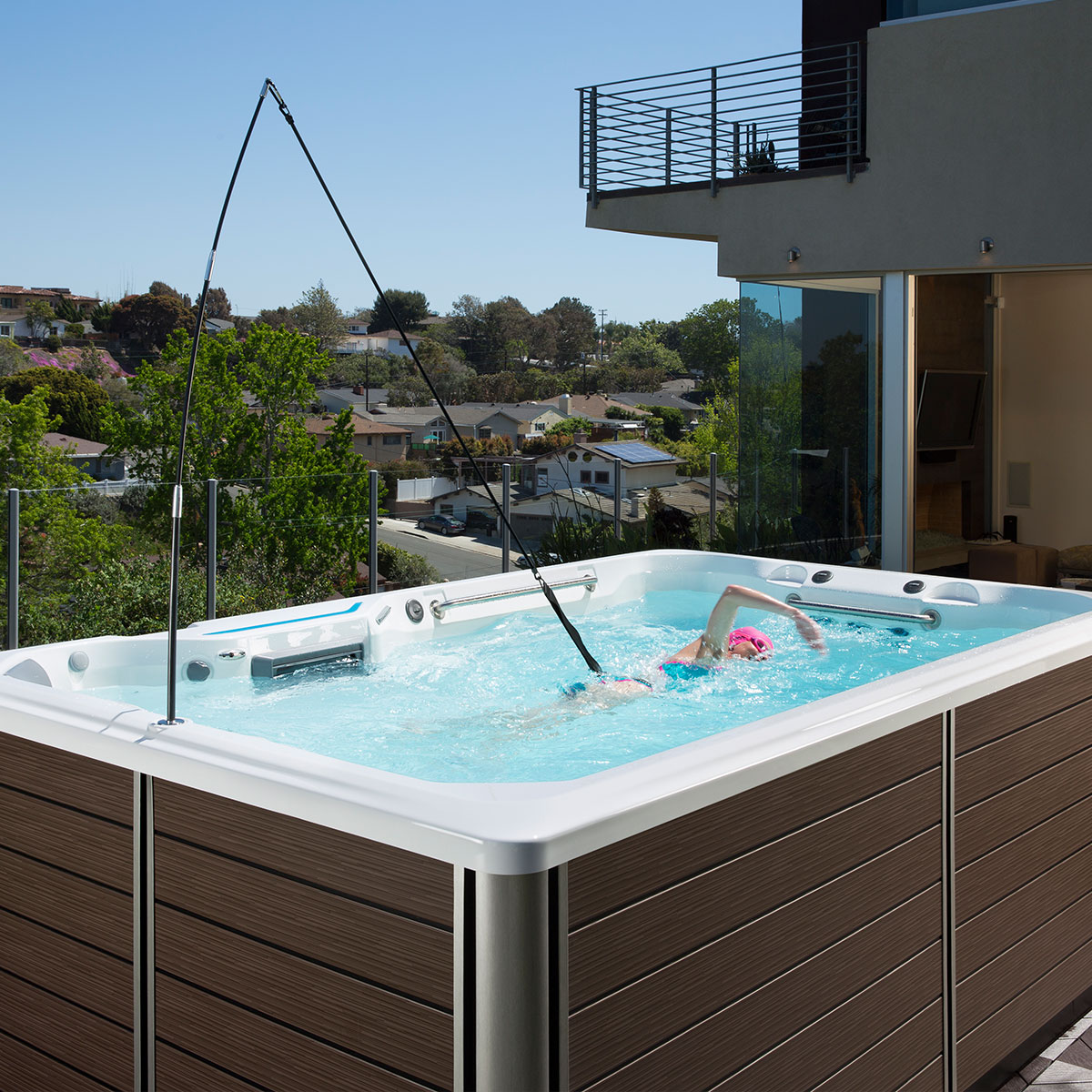

Swim Tether

All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.

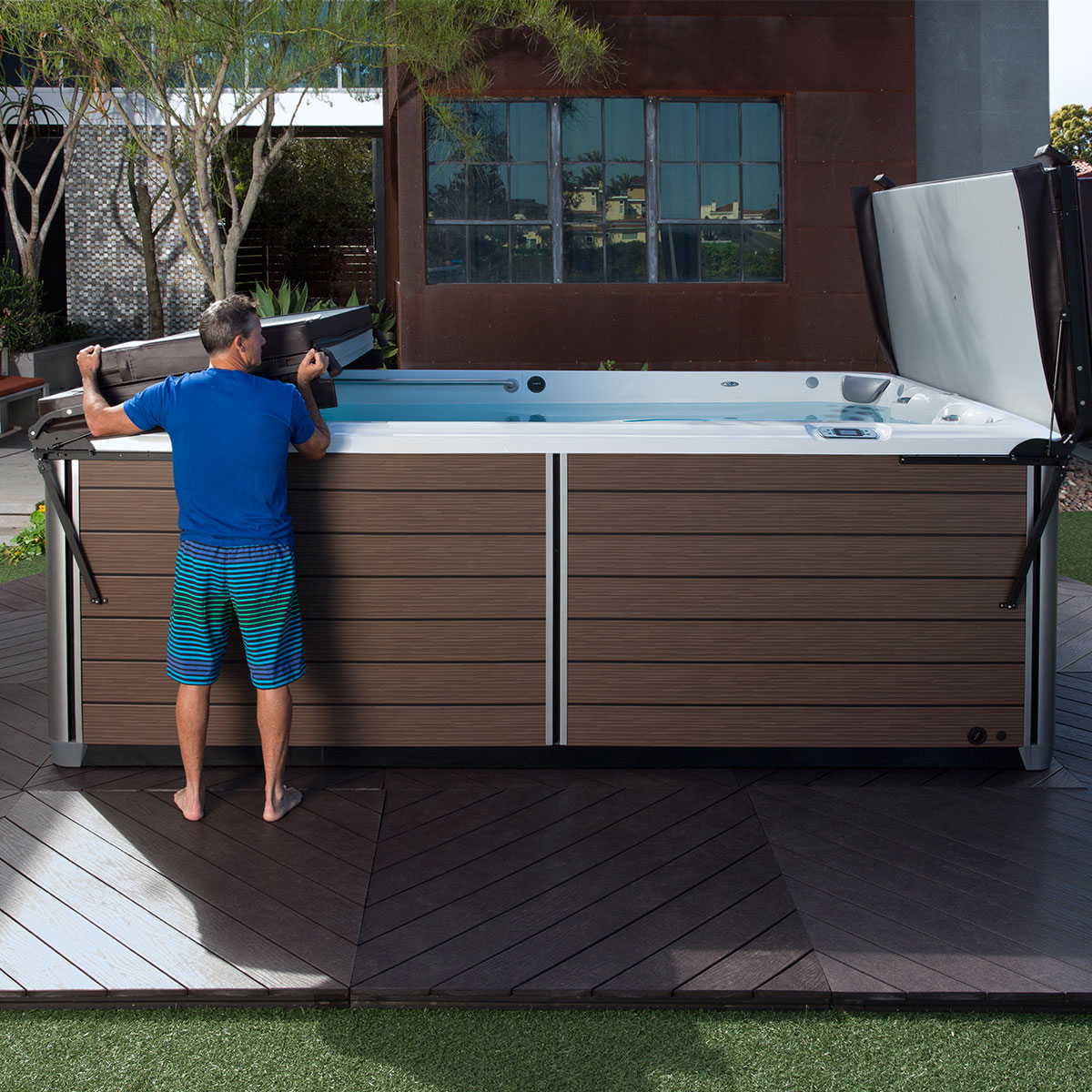

Watkins Cover & Lifter

A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.

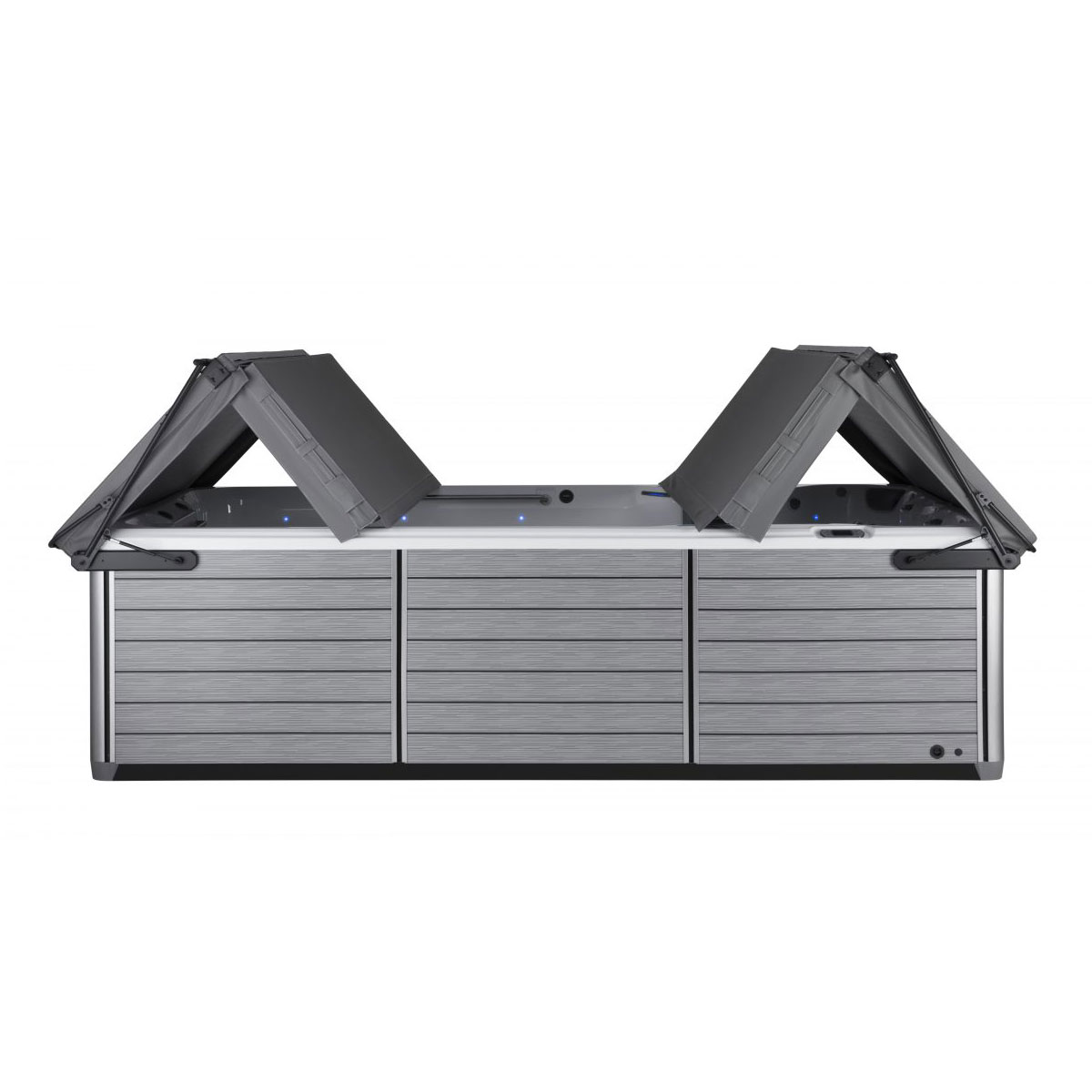

VacuSeal™ Lifting System

The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.

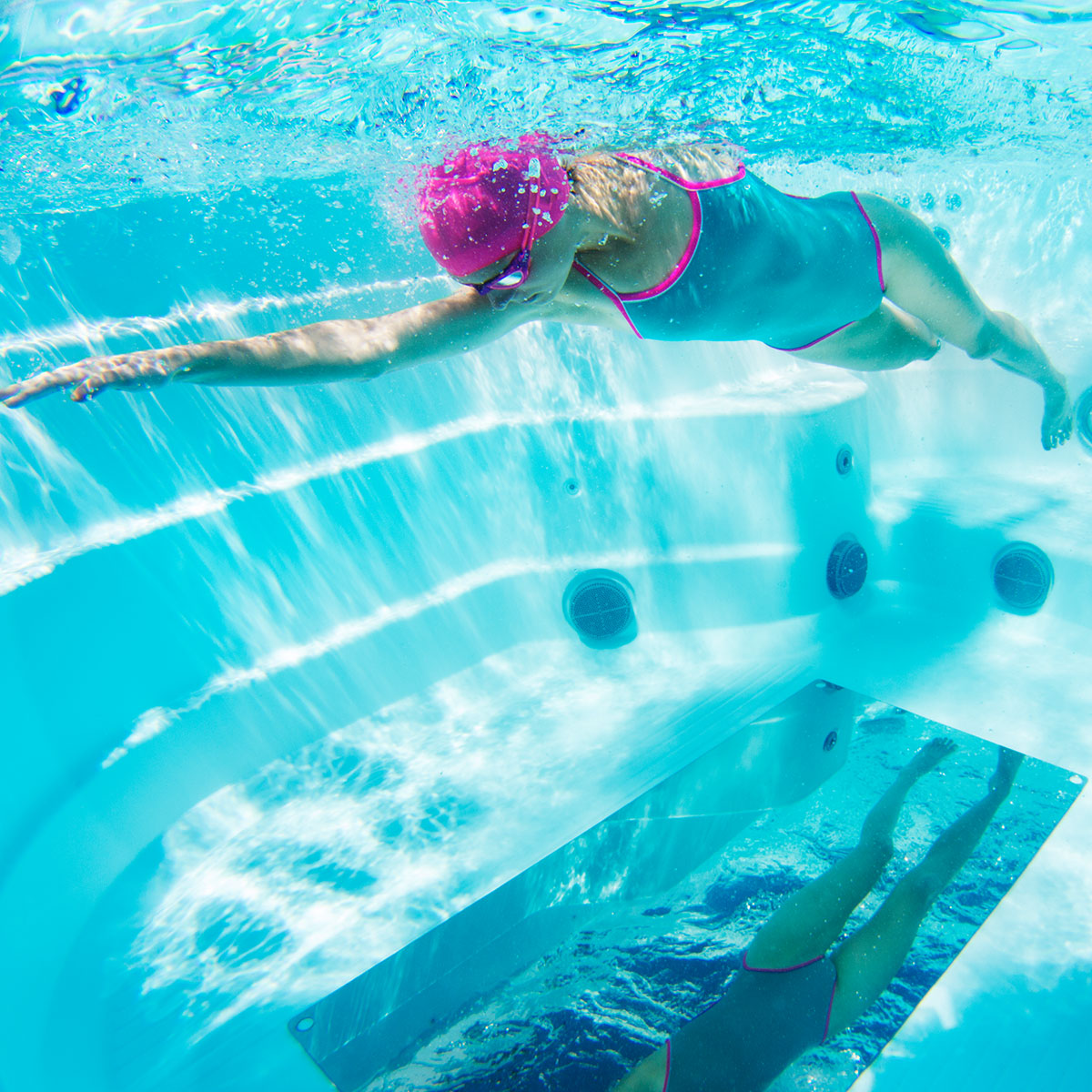

Underwater Mirror

See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.

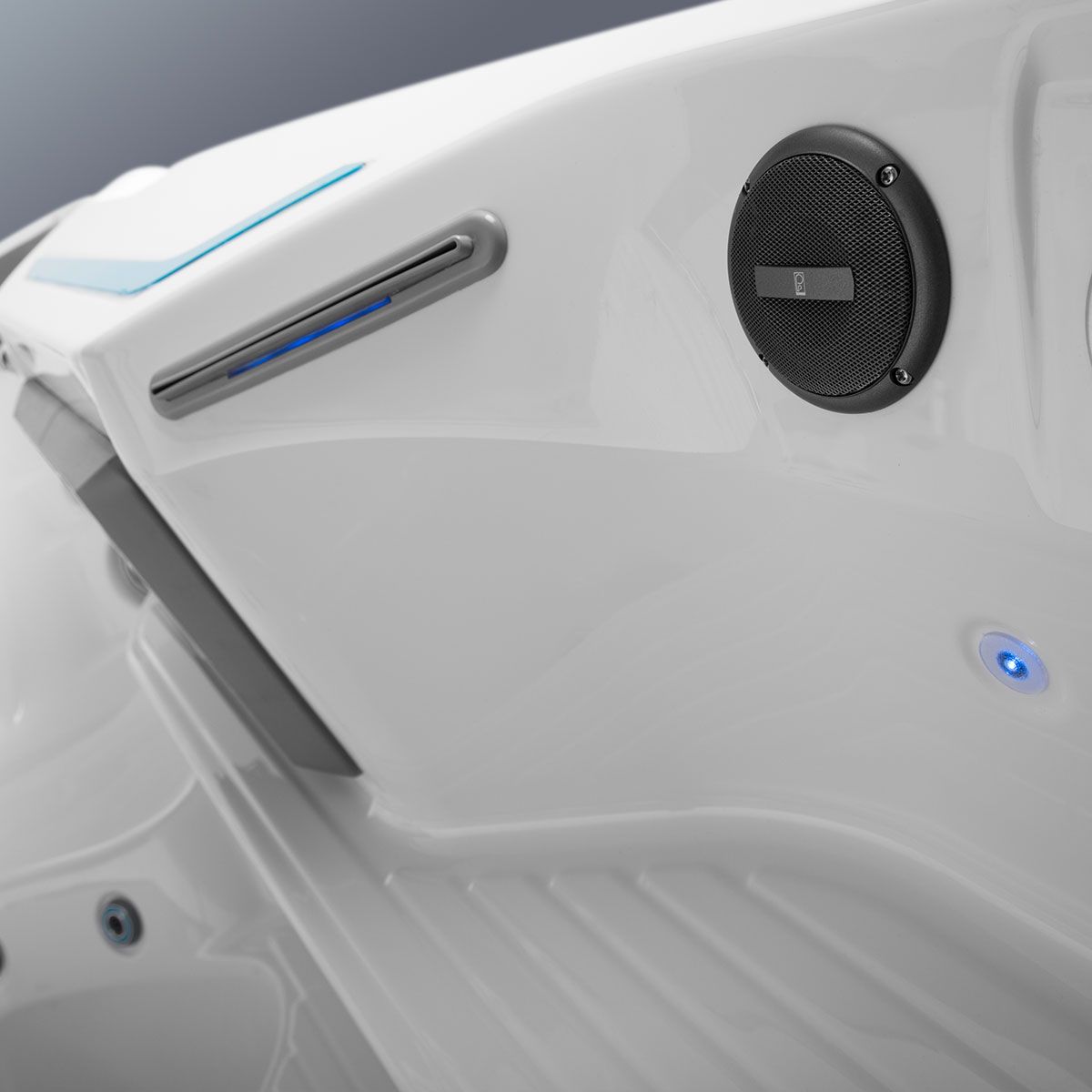

Bluetooth® – Enabled Sound System

For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.

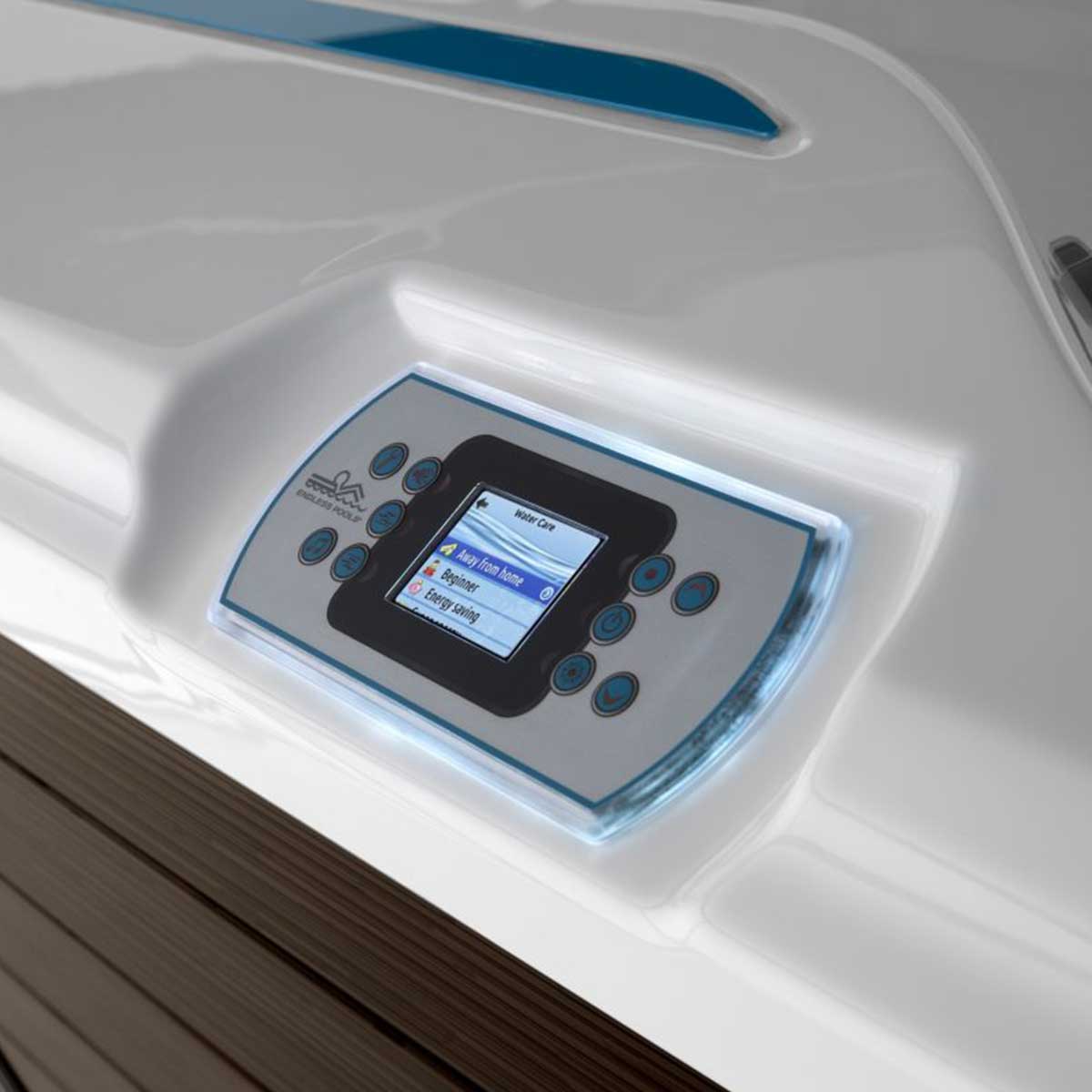

Wifi and Mobile App

Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.



Endless Pools Fit@Home Wifi and Mobile App

Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.

CoolZone Cooling System

Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.

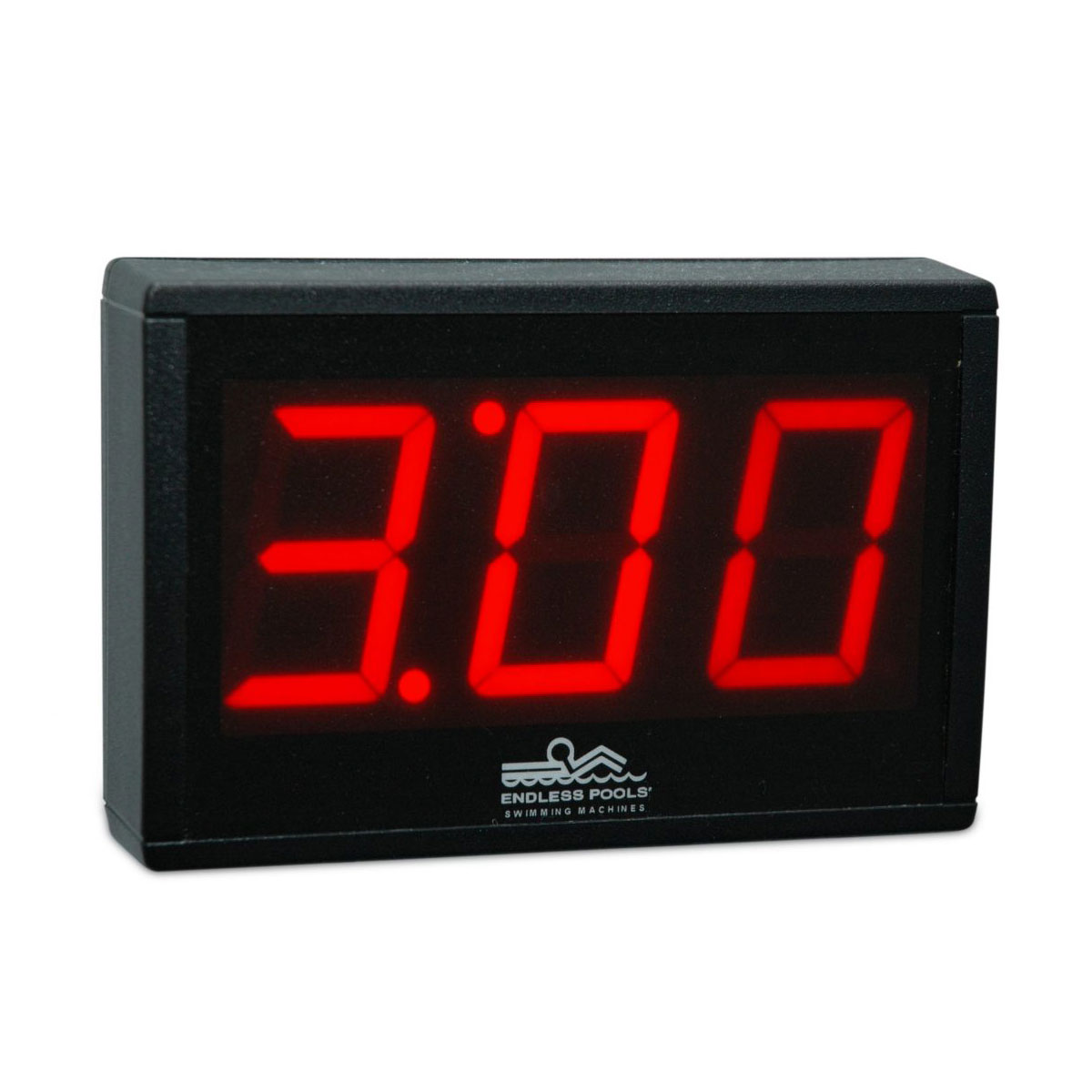

Pace Displays

The optional pace display is a necessity for any swim machine or treadmill user who wants to measure
performance. It allows for easy reading of the swim current pace and/or treadmill speed, and can be
toggled from meters to yards or viewed as a percentage of the top speed. With individual pace displays
for swim machine and treadmill, Fitness System owners can use both simultaneously for a more effective
workout.
